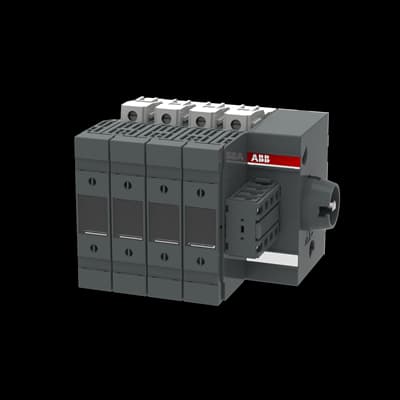

OS63GDSL40N1MNS
Product ID:86902
Updated: 2026/7/14
Key Features
- 1Ensure reliable performance in demanding industrial environments.
- 2Achieve zero permanent current (Iu) for enhanced safety.
- 3Provide zero short-circuit current (Iq) for maximum protection.
- 4Operate with zero power at AC-23, 400 V for efficiency.
- 5Trust the renowned ABB brand for quality and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 197 mm | Product Net Height | 192 mm |
| Product Net Depth / Length | 147 mm | Product Net Weight | 1.18 kg |
| Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Fuse Size | NH000 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Side Operated |
| Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m 4 N·m | Tightening Torque | 3 N·m 4 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA124599R1001 |
Specifications may be subject to change without notice
