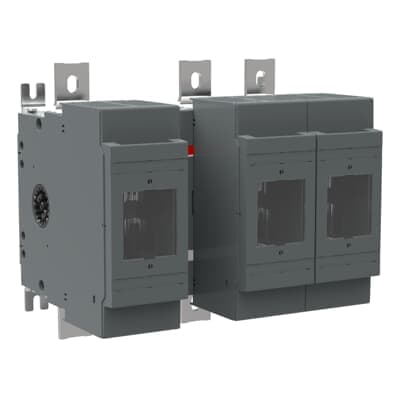

OS800D12-3
Product ID:74642
Updated: 2026/4/3
Key Features
- 1Deliver reliable 800A current rating for efficient power management. 2、Ensure universal application with full DIN rail compatibility. 3、Operate safely and easily via the front-operated design. 4、Guarantee durability with a robust pollution level 3 construction. 5、Meet enhanced safety standards including UL and CSA certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 13.63 kg | Fuse Size | NH2 NH3 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 75 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 50 ⦠75 N·m | Tightening Torque | 50 ⦠75 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA105543R1001 |
Specifications may be subject to change without notice
