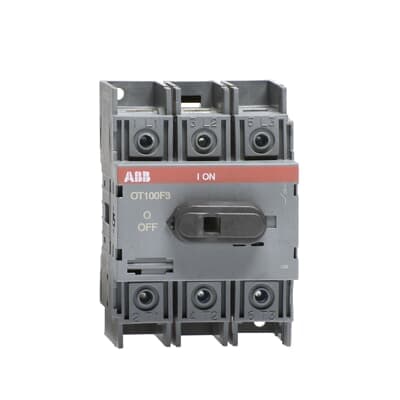

OT100F3/B25
Product ID:89839
Updated: 2026/7/14
Key Features
- 1Ensure reliable operation with a quick-make/quick-break mechanism.
- 2Achieve finger-proof installations and superior short circuit protection with IP20 rating.
- 3Select flexible installation via DIN Rail or Surface mounting options.
- 4Simplify handling with snap-on auxiliary contacts and an adjustable shaft.
- 5Handle 100 A, 25 hp at 200/208 VAC, 30 hp at 240 VAC, and 50 hp at 480/600 VAC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301264D0201 |
| Pollution Degree | 3 | Product Net Width | 100 mm |
| Product Net Height | 70 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 10 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A | Degree of Protection | Front IP20 |
| Handle Type | Knob Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Number of Poles | 3P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A (500 V) 60 A (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 37 kW (500 V) 37 kW (690 V) 37 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A | Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp (240 V AC) Single Phase 15 Hp (440 ... 480 V AC) Single Phase 25 Hp (550 ... 600 V AC) Single Phase 20 Hp (220 ... 240 V AC) Three Phase 30 Hp (440 ... 480 V AC) Three Phase 50 Hp (550 ... 600 V AC) Three Phase 50 Hp |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601401 | Manufacturer ID | 1SCA105005R1001 |
Specifications may be subject to change without notice
