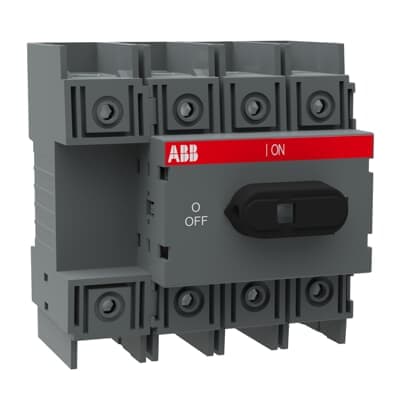

OT100F4N1
Product ID:73704
Updated: 2026/7/14
Key Features
- 1Ensure safe circuit isolation with a non-fusible disconnect switch.
- 2Operate conveniently using front-mounted clamp terminals.
- 3Install easily in panels with a compact, DIN-rail design.
- 4Achieve reliable performance in low-voltage applications up to 100A.
- 5Withstand demanding conditions using high-quality, durable materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301264D0201 |
| Pollution Degree | 3 | Product Net Width | 100 mm |
| Product Net Height | 96.5 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.49 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 115 A | Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Left Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Knob Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Mounting Type | Base mounting |
| Number of Poles | 4 | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A (500 V) 60 A (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 37 kW (500 V) 37 kW (690 V) 37 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Special Functions | No | Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A | Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp (240 V AC) Single Phase 15 Hp (440 ... 480 V AC) Single Phase 25 Hp (550 ... 600 V AC) Single Phase 20 Hp (220 ... 240 V AC) Three Phase 30 Hp (440 ... 480 V AC) Three Phase 50 Hp (550 ... 600 V AC) Three Phase 50 Hp |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque UL/CSA | 55 in·lb |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA105020R1001 |
