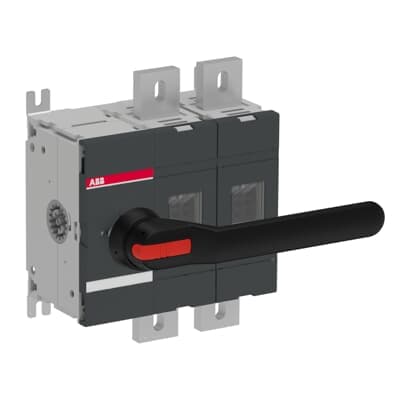

OT1250E02K
Product ID:82412
Updated: 2026/4/3
Key Features
- 1Ensure reliable power distribution in demanding industrial applications. 2、Enhance operational efficiency with smart switch-disconnector design. 3、Withstand high voltage up to 1000 V for robust insulation. 4、Handle rated operational voltage of 690 V and current up to 110 kA. 5、Guarantee safety through intelligent disconnection capabilities.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Net Width | 254.5 mm |
| Product Net Height | 306 mm | Product Net Depth / Length | 167 mm |
| Product Net Weight | 1.4 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A |
| Degree of Protection | Front IP00 | Handle Color | Black |
| Handle Type | Handle and shaft not included | Lock Type | Yes |
| Mechanical Durability | 6000 | Number of Poles | 2P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 29 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA122711R1001 |
Specifications may be subject to change without notice
