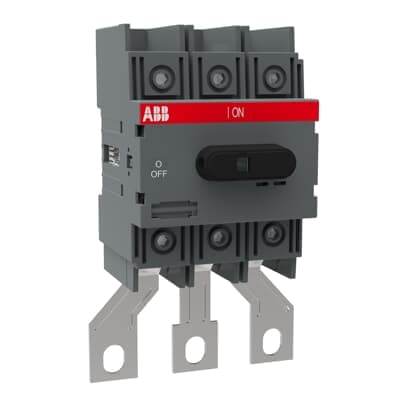

OT125FLB3
Product ID:87271
Updated: 2026/4/4
Key Features
- 1Handle currents from 16A to 4000A and voltages up to 1000V AC. 2、Utilize a compact design to save valuable panel space. 3、Select installation positions freely for efficient planning. 4、Meet international safety standards with IEC and UL approvals. 5、Customize with accessories like extension shafts and auxiliary switches.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301264D0201 |
| Pollution Degree | 3 | Product Net Width | 90 mm |
| Product Net Height | 154 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.43 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 125 A | Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Type | Knob Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A (500 V) 70 A (690 V) 50 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 45 kW (500 V) 45 kW (690 V) 45 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3600161 |
| E-Number (Norway) | 4363504 | Manufacturer ID | 1SCA114833R1001 |
