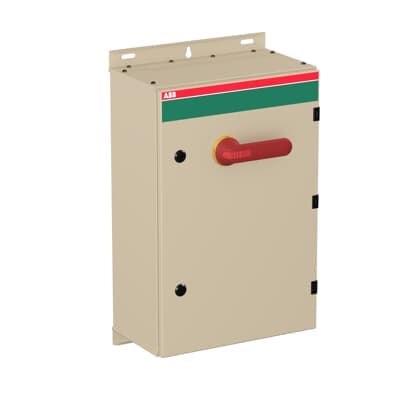

OT125GAUC6AZ
Product ID:87730
Updated: 2026/4/4
Key Features
- 1Operate from the front with IP65 protection for harsh conditions. 2、Utilize self-extinguishing UL94 V0 plastic for enhanced safety. 3、Configure versatile auxiliary contact options (4NO+2NC). 4、Install in 4- and 5-wire systems with M or Pg cable outlets. 5、Rely on high-impact, chemical-resistant PBT plastic enclosure.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 400 mm | Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 21.31 kg |
| Cable Cross-Section | 10 ... 70 mm² | Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm | Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² Screw Clamp / PE Terminal 4pc,10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet | Enclosure Type | MSC |
| Handle Color | Red / Yellow | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 1 NC | Neutral Type | No neutral terminal |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 6P | Pollution Degree | 3 |
| Position of Line Terminals | Bottom In - Bottom Out | Rated Conditional Short-Circuit Current (Inc) | 24 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 55 kW (500 V) 75 kW (690 V) 110 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals | Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm | Wire Stripping Length | 20 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA148494R1001 |
Specifications may be subject to change without notice
