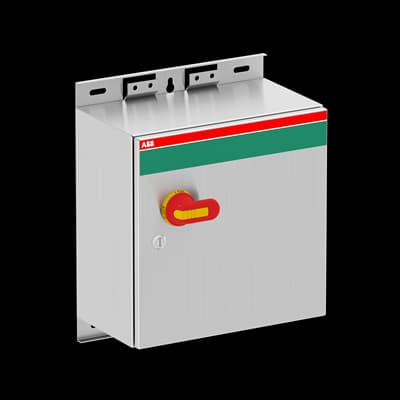

OT125GSUM3AZ
Product ID:90575
Updated: 2026/4/3
Key Features
- 1Handle robust 125 A electrical loads reliably. 2、Apply versatile 600 VAC across diverse industrial settings. 3、Operate efficiently with a front-operated quick make/break mechanism. 4、Ensure durability with a fully enclosed 8 kV impulse-rated construction. 5、Install easily via base mount and screw terminals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 400 mm | Product Net Height | 400 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 14.8 kg |
| Cable Cross-Section | 10 ... 70 mm² | Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 2xø50.5+ø20.5 | Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² Screw Clamp / PE Terminal 2pc,10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel | Enclosure Type | Ensto_R |
| Handle Color | Red / Yellow | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mechanical Durability | 20000 | Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 | Number of Poles | 3P |
| Pollution Degree | 3 | Position of Line Terminals | Bottom In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W | Rated Conditional Short-Circuit Current (Inc) | 24 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 55 kW (500 V) 75 kW (690 V) 110 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Special Functions | EMC |
| Standards | IEC 60947-1, -3 | Switches Operating Mechanism | On the Front of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm | Wire Stripping Length | 20 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA161472R1001 |
Specifications may be subject to change without notice
