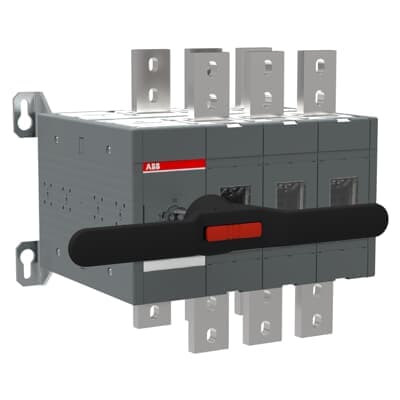

OT1600E03CP
Product ID:83622
Updated: 2026/4/4
Key Features
- 1Optimize panel performance with reliable 1600A AC-22A current handling. 2、Integrate a compact design featuring base mounting and bolt terminations. 3、Ensure operator safety using the IP65 pistol handle and shaft. 4、Enhance security with door interlock and padlockable handle positions. 5、Reduce downtime in motor control centers and switchboards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 400 mm 15.75 in |
| Product Net Height | 372 mm 14.65 in | Product Net Depth / Length | 309 mm 12.17 in |
| Product Net Weight | 38.22 kg 84.26 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1600 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1600 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) | Terminal Type | Screw Terminals |
| Terminal Width | 50 mm | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open | Ampere Rating | 1600 A |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3600149 | Manufacturer ID | 1SCA022872R1840 |
