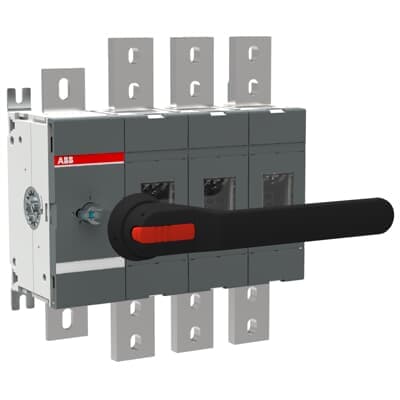

OT1600E03N3P
Product ID:87256
Updated: 2026/4/4
Key Features
- 1Ensure IP65 protection against dust and water ingress with the rated handle. 2、Adjust the shaft for flexible installation across various panel depths. 3、Secure the system by padlocking the handle in the OFF-position. 4、Enhance safety with the integrated door interlock in the ON-position. 5、Support demanding applications with a high 1600 A current rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Net Width | 334.5 mm |
| Product Net Height | 372 mm | Product Net Depth / Length | 167 mm |
| Product Net Weight | 18.9 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1600 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Fourth Pole Position | Left Side |
| Fourth Pole Type | Detachable Neutral Link Integrated Into the Mechanism | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 6000 | Mounting Type | Base mounting |
| Number of Poles | 3P+N | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA (1250 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A (1000 V) 1600 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Terminal Type | Lug terminals | Terminal Width | 50 mm |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3661756 |
| Manufacturer ID | 1SCA022865R6920 |
Specifications may be subject to change without notice
