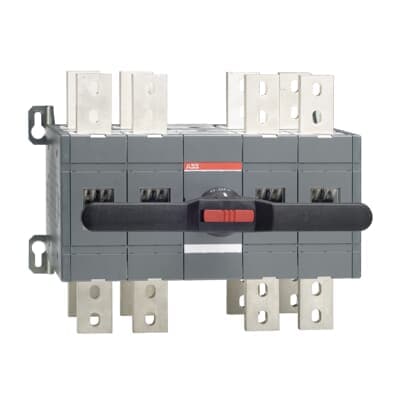

OT1600E22CP
Product ID:82977
Updated: 2026/7/15
Key Features
- 1Handle high currents up to 1600 A for robust performance.
- 2Operate reliably in extreme industrial conditions and environments.
- 3Install easily with flexible orientation and user-friendly design.
- 4Enhance safety with an IP65-rated handle and durable shaft.
- 5Meet EU Directive 2011/65/EU and Amendment 2015/863 for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 480 mm 18.9 in |
| Product Net Height | 372 mm 14.65 in | Product Net Depth / Length | 309 mm 12.17 in |
| Product Net Weight | 47.66 kg 105.07 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1600 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1600 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) | Terminal Type | Screw Terminals |
| Terminal Width | 50 mm | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open | Ampere Rating | 1600 A |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641575 | Manufacturer ID | 1SCA103303R1001 |
Specifications may be subject to change without notice
