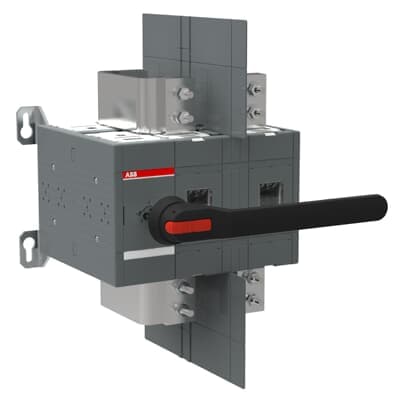

OT1600U02P
Product ID:82305
Updated: 2026/4/3
Key Features
- 1Handle robust power with a 1600A current rating. 2、Ensure reliability with 12kV impulse withstand voltage. 3、Meet safety standards including UL98 and CSA C22.2 NO.4. 4、Save space and reduce costs via panel mount design. 5、Withstand extreme conditions with durable mechanical construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Net Width | 365 mm | Product Net Height | 546 mm |
| Product Net Depth / Length | 335 mm | Product Net Weight | 39.1 kg |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 2500 | Mounting Type | Base mounting |
| Number of Poles | 2P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 96 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No | Standards | UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 56 N·m | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 1600 A | Tightening Torque | acc. IEC 60947-1 56 N·m |
| Tightening Torque UL/CSA | 500 in·lb | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA144206R1001 |
