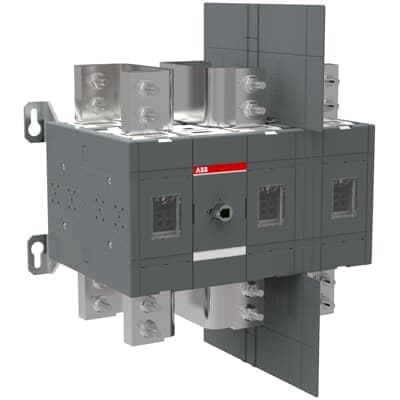

OT1600U12
Product ID:84559
Updated: 2026/4/4
Key Features
- 1Deliver high performance with a 50 kA short circuit rating at 600V. 2、Save space using a modular and compact design. 3、Enhance safety with double insulation and secure locks. 4、Simplify installation via an adjustable shaft and snap-on contacts. 5、Ensure compliance by meeting UL 98 and CSA standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Net Width | 445 mm | Product Net Height | 546 mm |
| Product Net Depth / Length | 335 mm | Product Net Weight | 53.7 kg |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 2500 |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 96 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
| Standards | UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 56 N·m |
| Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 1600 A |
| Tightening Torque | acc. IEC 60947-1 56 N·m | Tightening Torque UL/CSA | 500 in·lb |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA144200R1001 |
