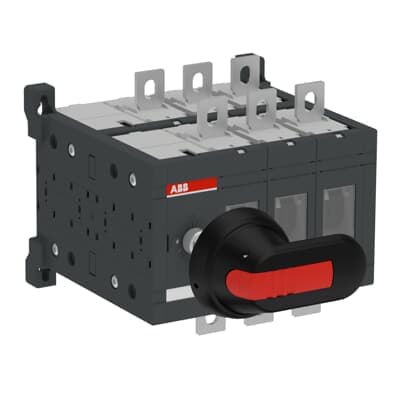

OT160E03DP
Product ID:82288
Updated: 2026/7/14
Key Features
- 1Achieve a high thermal current rating of 1600 A.
- 2Operate easily with the front-mounted design.
- 3Ensure reliable performance in harsh environments.
- 4Apply across machinery, power distribution, and switchboards.
- 5Save panel space with compact 334.5 mm width.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 170 mm | Product Net Height | 150 mm |
| Product Net Depth / Length | 159.5 mm | Product Net Weight | 2.6 kg |
| Cable Cross-Section | Cu 10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 20000 | Number of Poles | 6P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA (355 A fuse, 690 V) 80 kA (250 A fuse, 690 V) 100 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (690 V) 160 A (690 V) 380415V;160 A (690 V) 500V;160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 135 A (500 V) 125 A (690 V) 80 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 75 kW (690 V) 75 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA107188R1001 |
Specifications may be subject to change without notice
