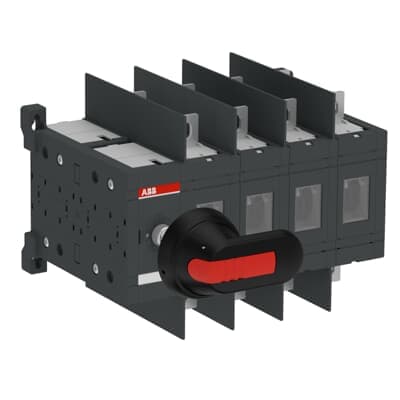

OT160E04WDP
Product ID:82365
Updated: 2026/7/14
Key Features
- 1Install compact and powerful design easily.
- 2Enhance safety with 1,000 V insulation voltage.
- 3Ensure durable construction using adjustable mounting feet.
- 4Secure connections with the included terminal bolt kit.
- 5Apply ideally for various industrial and commercial uses.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 205 mm | Product Net Height | 150 mm |
| Product Net Depth / Length | 159.5 mm | Product Net Weight | 4.2 kg |
| Cable Cross-Section | Cu 10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 20000 | Number of Poles | 8P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 135 A (500 V) 125 A (690 V) 80 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 75 kW (690 V) 75 kW |
| Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA107240R1001 |
Specifications may be subject to change without notice
