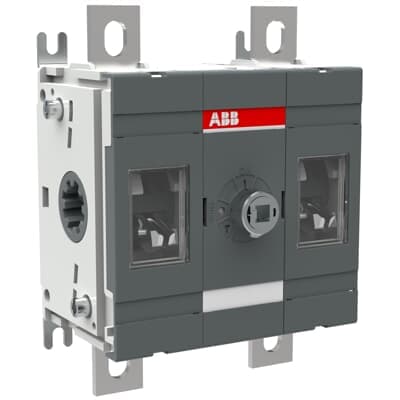

OT160EV11
Product ID:86984
Updated: 2026/4/4
Key Features
- 1Handle high currents up to 200 A AC-22A reliably. 2、Ensure safety with full compliance to IEC standards. 3、Maximize panel space using a compact 150x110.5x82.5 mm design. 4、Deploy across voltages from 380V to 690V. 5、Reduce industrial downtime with robust switching performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 | Product Net Width | 150 mm |
| Product Net Height | 110.5 mm | Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 0.9 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP00 | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 20000 |
| Mounting Type | Base mounting | Number of Poles | 2P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 3.2 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW (400 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
| Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA122726R1001 |
Specifications may be subject to change without notice
