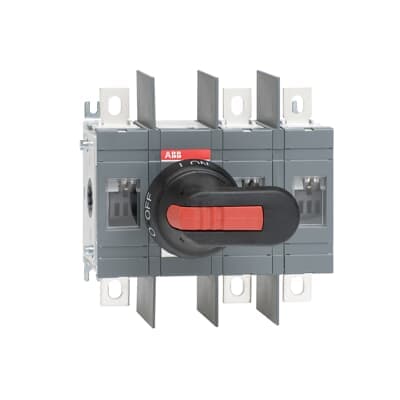

OT160EV12WP
Product ID:83492
Updated: 2026/4/4
Key Features
- 1Maximize performance for demanding applications across diverse environments. 2、Save space and installation costs with a modular, compact design. 3、Enhance safety using integrated IP20 protection and door interlocks. 4、Simplify setup with adjustable shafts and mounting feet to cut labor time. 5、Reduce inventory needs through versatile accessory compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 | Product Net Width | 174.5 mm |
| Product Net Height | 170 mm | Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.4 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Wide phase distance | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 20000 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W | Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA (355 A fuse, 690 V) 80 kA (250 A fuse, 690 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW (400 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA | Special Functions | Wide phase distance |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
| Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601370 | Manufacturer ID | 1SCA120606R1001 |
Specifications may be subject to change without notice
