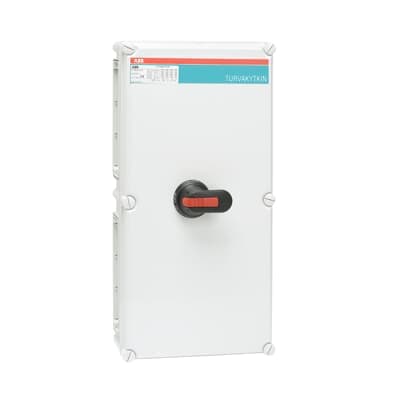

OT160EVFCC3T
Product ID:87154
Updated: 2026/7/15
Key Features
- 1Ensure high reliability for safe industrial performance.
- 2Utilize a 3-pole configuration for three-phase systems.
- 3Handle up to 80 kW of power at 400V AC.
- 4Rely on IP65 protection against dust and water.
- 5Secure operations with a padlockable safety handle.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 280 mm | Product Net Height | 560 mm |
| Product Net Depth / Length | 130 mm | Product Net Weight | 5.4 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Plastic |
| Enclosure Type | Fibox | Handle Color | Black |
| Handle Type | Pistol handle | Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 | Number of Poles | 3P |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 80 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 | Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt | Tightening Torque | Main Circuit 6 N·m |
| Recommended Screw Driver | Main Circuit M8 | Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Finland) | 3640408 |
| E-Number (Norway) | 1428982 | E-Number (Sweden) | 3134568 |
| Manufacturer ID | 1SCA148656R1001 |
Specifications may be subject to change without notice
