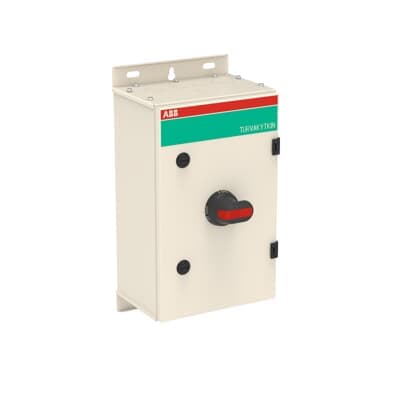

OT160EVLCC4BZ
Product ID:87496
Updated: 2026/4/4
Key Features
- 1Ensure superior safety with IP65 and IP20 protection standards. 2、Achieve high reliability using self-extinguishing UL94 V0 plastic. 3、Simplify installation with metric threaded knockouts and cable glands. 4、Select versatile 2- to 6-pole versions for various systems. 5、Enhance security with a standard padlockable handle in O position.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 250 mm | Product Net Height | 400 mm |
| Product Net Depth / Length | 180 mm | Product Net Weight | 10.6 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | C-flange / C-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Enclosure Type | MSC | Handle Color | Black |
| Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable neutral | Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 | Number of Poles | 4P |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 | Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt | Tightening Torque | Main Circuit 6 N·m |
| Recommended Screw Driver | Main Circuit M8 | Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA148268R1001 |
