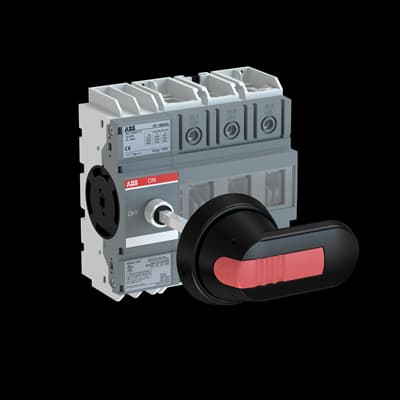

OT160G03P
Product ID:83575
Updated: 2026/4/4
Key Features
- 1Handle up to 160A current for robust power distribution. 2、Achieve IP65 protection with a sealed handle and shaft. 3、Operate easily from the front and side panels. 4、Install in tight spaces with compact 123x130x72mm dimensions. 5、Meet IEC, UL, and CSA safety standards reliably.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301267D0201 |
| Pollution Degree | 3 | Product Net Width | 123 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.9 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Lock Type | Yes | Mechanical Durability | 20000 |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front and side operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA (200 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 90 kW (690 V) 132 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No | Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A | Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp (440 ... 480 V AC) Single Phase 30 Hp |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque UL/CSA | 53 in·lb |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3638769 |
| E-Number (Norway) | 4372122 | E-Number (Sweden) | 3171058 |
| Manufacturer ID | 1SCA135139R1001 |
Specifications may be subject to change without notice
