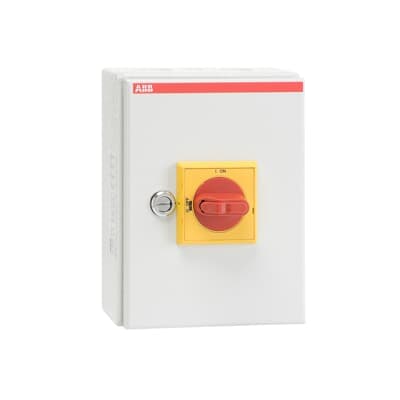

OT16ETMM6AE
Product ID:87576
Updated: 2026/7/15
Key Features
- 1Ensure high reliability in harsh industrial environments.
- 2Switch efficiently in 6-pole applications up to 750V.
- 3Protect against dust and water with IP65 rating.
- 4Integrate easily with a compact 200x150x100mm size.
- 5Comply with EU RoHS Directive 2002/95/EC standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 150 mm | Product Net Height | 200 mm |
| Product Net Depth / Length | 100 mm | Product Net Weight | 1.7 kg |
| Cable Cross-Section | 0.75 ... 10 mm² | Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 2xø25.5+ø16.5 | Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² Screw Clamp / PE Terminal 2pc,1.5 ... 25 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet | Handle Color | Red / Yellow |
| Handle Type | Selector handle | Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 | Number of Poles | 6P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 32 A (500 V) 32 A (690 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A (500 V) 16 A (690 V) 10 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW (500 V) 7.5 kW (690 V) 7.5 kW |
| Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA | Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Special Functions | EMC | Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 0.8 N·m | Wire Stripping Length | 10 mm |
| Wire Stripping Length | 10 mm | Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 0.8 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022742R1160 |
Specifications may be subject to change without notice
