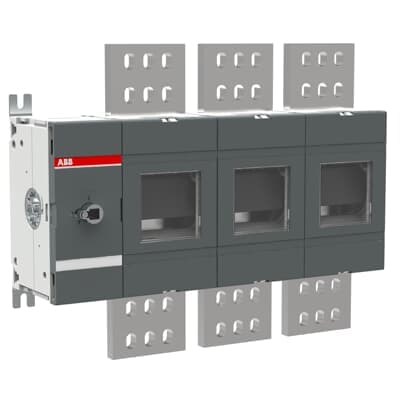

OT2500E03/C9
Product ID:88085
Updated: 2026/7/15
Key Features
- 1Handle up to 2500 A at 380-415 V, 500 V, and 690 V.
- 2Meet IEC 60947-3 standards with pollution degree 3 and 6000-cycle durability.
- 3Comply with EU Directive 2011/65/EU and Amendment 2015/863.
- 4Install easily with base mounting for versatile application.
- 5Secure connections using the included terminal bolt kit and lug terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 | Product Net Width | 930 mm |
| Product Net Height | 1000 mm | Product Net Depth / Length | 1200 mm |
| Product Net Weight | 237 kg | Degree of Protection | Front IP00 |
| Handle Type | Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 6000 | Number of Poles | 3P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA126289R1001 |
Specifications may be subject to change without notice
