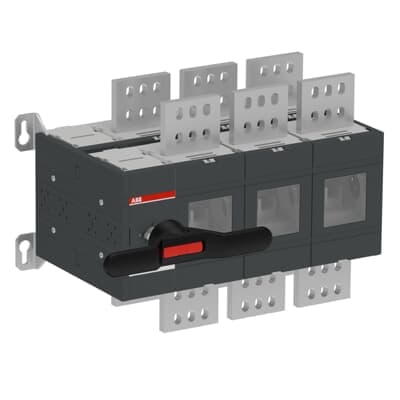

OT2500E03DDP
Product ID:75981
Updated: 2026/4/3
Key Features
- 1Handle demanding applications with a high 2500A amperage rating. 2、Save space using the compact design and IP65 enclosure. 3、Ensure reliability in extreme conditions with a 176 kA short circuit rating. 4、Simplify installation and maintenance with the included terminal bolt kit. 5、Secure connections using the front-operated switch with lug terminals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 | Product Net Width | 538 mm |
| Product Net Height | 376.5 mm | Product Net Depth / Length | 335 mm |
| Product Net Weight | 55.6 kg | Degree of Protection | Front IP00 |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Lock Type | Yes | Mechanical Durability | 6000 |
| Number of Poles | 6 | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 85 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000229 - Handle for power circuit breaker |
| ETIM 9 | EC000229 - Handle for power circuit breaker | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA117292R1001 |
Specifications may be subject to change without notice
