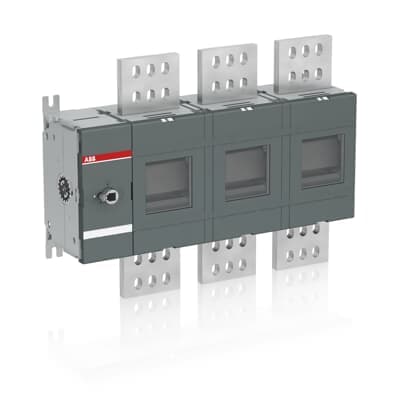

OT2500E03W4/C9
Product ID:82426
Updated: 2026/4/3
Key Features
- 1Deliver 1000V rated operational voltage for main circuits. 2、Ensure high short-circuit making capacity of 176 kA at 690 V. 3、Provide robust short-time withstand for demanding electrical environments. 4、Guarantee safe operation as a reliable switch-disconnector. 5、Feature durable construction for harsh industrial conditions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 | Product Net Width | 930 mm |
| Product Net Height | 1000 mm | Product Net Depth / Length | 1200 mm |
| Product Net Weight | 426.2 kg | Degree of Protection | Front IP00 |
| Handle Type | Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 6000 | Number of Poles | 3P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA126299R1001 |
