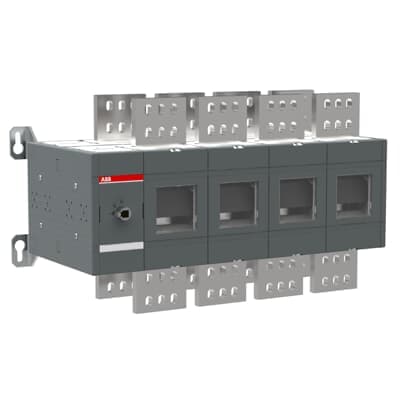

OT2500E04C
Product ID:85060
Updated: 2026/7/15
Key Features
- 1Achieve high operational voltage of 1000 V for robust main circuit performance.
- 2Ensure protection with a rated short-circuit making capacity of 176 kA at 690 V.
- 3Operate easily using the front-mounted mechanism for convenient access.
- 4Install flexibly with base mounting for versatile application options.
- 5Meet IEC 60947-3 standards for guaranteed safety and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 664 mm 26.14 in |
| Product Net Height | 377 mm 14.84 in | Product Net Depth / Length | 335 mm 13.19 in |
| Product Net Weight | 68.64 kg 151.33 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 2000 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 2000 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
| Terminal Type | Screw Terminals | Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Ampere Rating | 2500 A | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA103877R1001 |
Specifications may be subject to change without notice
