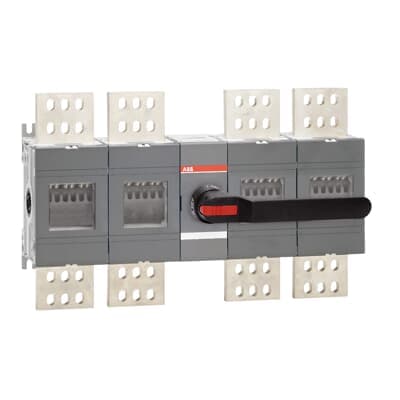

OT2500E22P-135
Product ID:80546
Updated: 2026/4/3
Key Features
- 1Handle up to 2500 A with a DC-20B rating for demanding applications. 2、Enhance safety with an IP65 handle, terminal kit, and padlockable OFF position. 3、Choose versatile mounting via direct or external pistol handle options. 4、Meet global standards with IEC, ATEX, CE, and DNV GL certifications. 5、Ensure durability with a robust 4-pole base-mounted construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 | Product Frame Size | OT2500-135 |
| Product Net Width | 598.5 mm 23.6 in | Product Net Height | 376.5 mm 14.8 in |
| Product Net Depth / Length | 145.5 mm 5.7 in | Product Net Weight | 33.3 kg 73.4 lb |
| Connection Configuration | Connection type 2 or 3 | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A Π= 40 °C 4000 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 2500 A Fully Enclosed 4000 A | Degree of Protection | Front IP00 |
| Handle Color | Black | Handle Length | 274 mm 10.8 in |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 600 cycle | Mounting Type | Base mounting |
| Number of Circuits | 1 2 | Number of Poles | 4 |
| Operating Mode | Front Operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current AC-20B | (1000 V AC) 2500 A (1000 V AC) 4000 A | Rated Operational Current DC-20B | (1500 V DC) 2500 A (1500 V DC) 4000 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 80 kA for 0.3 s 100 kA | Rated Voltage (Ur) | 1500 V |
| Shaft Diameter | 12 mm 0.47 in | Shaft Length | 280 mm 11.0 in |
| Special Functions | No | Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) | Terminal Type | Lug terminals |
| Terminal Width | 100 mm 3.94 in | Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA160400R1001 |
Specifications may be subject to change without notice
