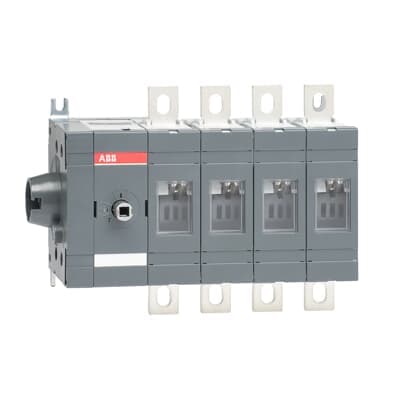

OT250ES04
Product ID:83972
Updated: 2026/4/4
Key Features
- 1Operate reliably in demanding industrial environments. 2、Ensure secure operation with comprehensive inbuilt safety features. 3、Install compactly for various mounting types including surface. 4、Handle up to 250A of current for heavy-duty applications. 5、Utilize as a main or maintenance switch for flexible configurations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 | Product Net Width | 216.5 mm |
| Product Net Height | 150 mm | Product Net Depth / Length | 82 mm |
| Product Net Weight | 1.9 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 20000 |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Side operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA (355 A fuse, 690 V) 80 kA (250 A fuse, 690 V) 100 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW (400 ... 415 V) 145 kW (500 V) 170 kW (690 V) 250 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3661707 |
| Manufacturer ID | 1SCA022860R1010 |
