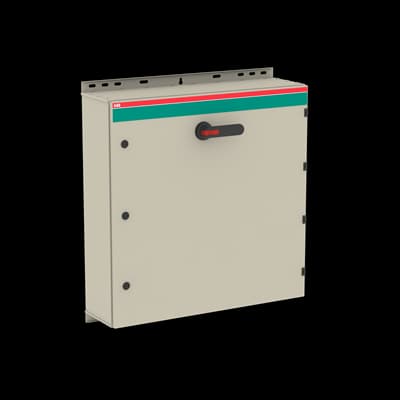

OT250KLUU6BLZ
Product ID:71337
Updated: 2026/7/14
Key Features
- 1Utilize high-impact PBT plastic for chemical resistance.
- 2Achieve IP65 protection for reliable harsh environment operation.
- 3Select from color-coded handles for easy visual identification.
- 4Support demanding applications up to 690V and 250A.
- 5Comply with IEC 60947-3 and EN60204 safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Product Net Width | 800 mm |
| Product Net Height | 800 mm | Product Net Depth / Length | 230 mm |
| Product Net Weight | 36.14 kg | Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank | Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet | Handle Color | Black |
| Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC | Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable neutral | Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 | Number of Poles | 6P |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A (690 V) 250 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW (500 V) 160 kW (690 V) 200 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 22 N·m |
| Tightening Torque | Main Circuit 22 N·m | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA103757R1001 |
Specifications may be subject to change without notice
