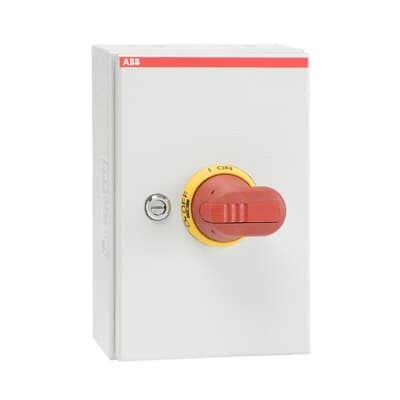

OT25ETMM6AE
Product ID:83390
Updated: 2026/4/4
Key Features
- 1Engineer reliable operation in demanding industrial environments. 2、Ensure robust safety with a steel enclosure and IP65 protection. 3、Secure efficient handling via an interlocked cover and pistol handle. 4、Meet various mounting requirements for versatile application. 5、Comply with stringent EMC and safety standards including IEC 60947-3.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 165 mm | Product Net Height | 250 mm |
| Product Net Depth / Length | 110 mm | Product Net Weight | 3.86 kg |
| Cable Cross-Section | 1.5 ... 35 mm² | Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xø32.5+ø16.5 / 2xø32.5+ø16.5 | Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² Screw Clamp / PE Terminal 2pc,1.5 ... 25 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet | Handle Color | Red / Yellow |
| Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 | Number of Poles | 6P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 45 A (500 V) 45 A (690 V) 45 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 30 A (500 V) 30 A (690 V) 20 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 15 kW (500 V) 15 kW (690 V) 15 kW |
| Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA | Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Special Functions | EMC | Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 0.8 N·m | Wire Stripping Length | 13 mm |
| Wire Stripping Length | 13 mm | Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 0.8 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022742R1240 |
Specifications may be subject to change without notice
