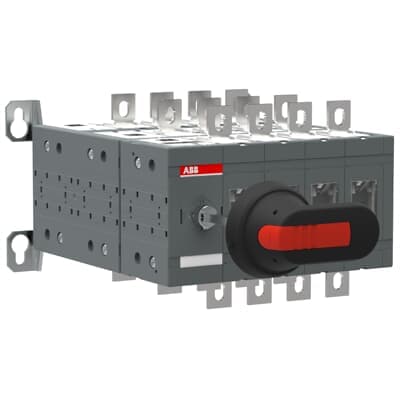

OT400E03YLP
Product ID:82632
Updated: 2026/4/3
Key Features
- 1Achieve reliable operation with a 400A thermal current rating. 2、Ensure robust protection via an IP65 handle and shaft. 3、Enable easy, safe switching with a 3-pole front-operated design. 4、Secure connections using the included terminal bolt kit. 5、Meet IEC 60947-3 standards for enhanced safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Product Net Width | 240 mm 9.45 in |
| Product Net Height | 185 mm 7.28 in | Product Net Depth / Length | 371 mm 14.61 in |
| Product Net Weight | 8.7 kg 19.18 lb | Degree of Protection | IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft included | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Operational Voltage | Main Circuit 1000 V | Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA145932R1001 |
Specifications may be subject to change without notice
