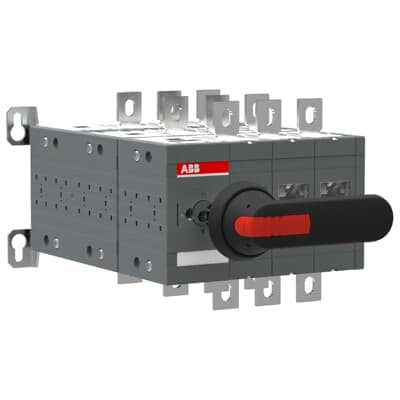

OT400E04YLP
Product ID:82633
Updated: 2026/7/15
Key Features
- 1Deliver a high thermal current rating of 400 A in fully enclosed conditions.
- 2Ensure robust and durable design with a front IP00 degree of protection.
- 3Enable easy manual operation with a black plastic IP65 pistol type handle.
- 4Support compatibility with various voltage ranges from 380-415 V to 690 V.
- 5Meet IEC 60947-3 standards for reliable performance and safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Product Net Width | 284 mm 11.18 in |
| Product Net Height | 205 mm 8.07 in | Product Net Depth / Length | 371 mm 14.61 in |
| Product Net Weight | 11.79 kg 25.99 lb | Degree of Protection | IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft included | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Operational Voltage | Main Circuit 1000 V | Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA145938R1001 |
Specifications may be subject to change without notice
