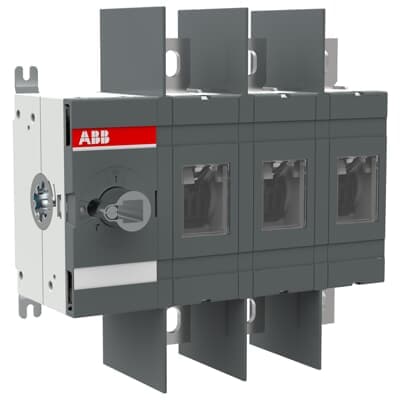

OT400U03-1000
Product ID:82312
Updated: 2026/7/14
Key Features
- 1Reduce shock risk with finger-proof dead front construction and terminal shrouds.
- 2Install flexibly using either top or bottom incoming power feed.
- 3Simplify installation and maintenance via a modular design.
- 4Secure the handle in the OFF position with up to three padlocks.
- 5Ensure reliable operation under extreme conditions with a 65 kA short circuit current rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SCC301266D0201 | Product Net Width | 221 mm |
| Product Net Height | 220 mm | Product Net Depth / Length | 105 mm |
| Product Net Weight | 3.0 kg | Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
| Ampere Rating | 200 A | Object Classification Code | Q |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA159824R1001 |
Specifications may be subject to change without notice
