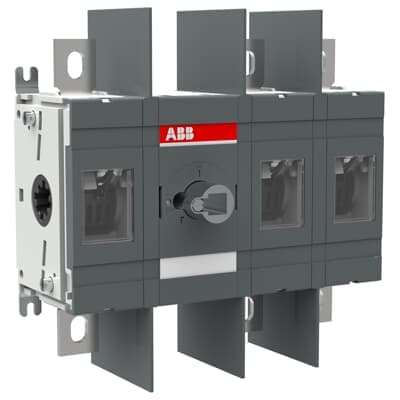

OT400U12-1000
Product ID:82313
Updated: 2026/7/14
Key Features
- 1Handle high currents up to 400 A for efficient power distribution.
- 2Save space with compact dimensions of 220x221x85 mm.
- 3Ensure reliability with a 65 kA short circuit current rating.
- 4Operate and maintain easily via front-operated non-fusible design.
- 5Meet high safety standards with UL98 and IEC compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SCC301266D0201 | Product Net Width | 226 mm |
| Product Net Height | 220 mm | Product Net Depth / Length | 105 mm |
| Product Net Weight | 3.0 kg | Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
| Ampere Rating | 200 A | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA159826R1001 |
Specifications may be subject to change without notice
