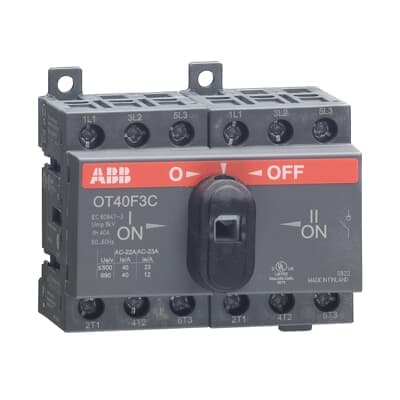

OT40F3C
Product ID:84495
Updated: 2026/4/4
Key Features
- 1Ensure reliable and safe electrical operations with robust design. 2、Protect motors and controllers in versatile industrial applications. 3、Handle high currents with a 40 A amperage rating. 4、Install easily in compact spaces with 68x70x68mm dimensions. 5、Meet UL508, CSA, and IEC standards for safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 70 mm 2.76 in | Product Net Height | 68 mm 2.68 in |
| Product Net Depth / Length | 68 mm 2.68 in | Product Net Weight | 0.25 kg 0.55 lb |
| Cable Cross-Section | 0.75 ... 10 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A (500 V) 23 A (690 V) 12 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW (500 V) 11 kW (690 V) 11 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kiloampere rms | Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m | Transition Type | Open |
| Ampere Rating | 40 A | Horsepower Rating UL/CSA | (acc. to UL 200 V) 10 Hp (acc. to UL 208 V) 10 Hp (acc. to UL 240 V) 10 Hp (acc. to UL 480 V) 20 Hp (acc. to UL 600 V) 25 Hp |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601440 | E-Number (Norway) | 4363552 |
| E-Number (Sweden) | 3171262 | Manufacturer ID | 1SCA104913R1001 |
Specifications may be subject to change without notice
