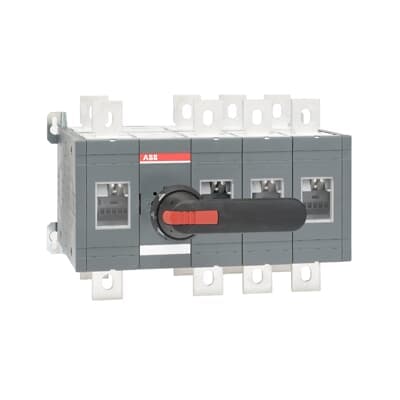

OT630E13CFP
Product ID:85311
Updated: 2026/4/4
Key Features
- 1Switch power fast with a 90° operating angle. 2、Ensure durability with IP65 protection in harsh environments. 3、Operate manually using the black plastic pistol-type handle. 4、Achieve efficient switching with a 20 ms minimum OFF-time. 5、Apply for high-reliability, quick-switching applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 376 mm 14.8 in |
| Product Net Height | 250 mm 9.84 in | Product Net Depth / Length | 280 mm 11.02 in |
| Product Net Weight | 18.66 kg 41.14 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
| Handle Type | Handle and shaft included | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 630 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms | Switches Operating Mechanism | Mechanism Between the Poles 13 (Between the Poles) |
| Terminal Type | Screw Terminals | Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Fast |
| Ampere Rating | 630 A | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3641687 |
| Manufacturer ID | 1SCA106988R1001 |
Specifications may be subject to change without notice
