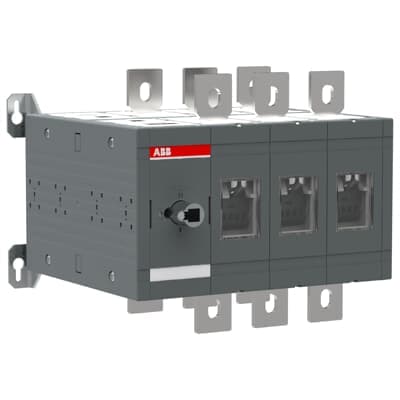

OT800E03C
Product ID:85870
Updated: 2026/4/4
Key Features
- 1Achieve high performance with quick-make/quick-break operation. 2、Utilize a compact design featuring a short current path. 3、Ensure protection with an IP65 rating against dust and water. 4、Apply to diverse applications like machinery and photovoltaic systems. 5、Order flexibly in multiples of one piece with MOQ of 1.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 311 mm 12.24 in |
| Product Net Height | 250 mm 9.84 in | Product Net Depth / Length | 280 mm 11.02 in |
| Product Net Weight | 15 kg 33.07 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Terminal Type | Screw Terminals | Terminal Width | 40 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Ampere Rating | 800 A | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022785R4270 |
