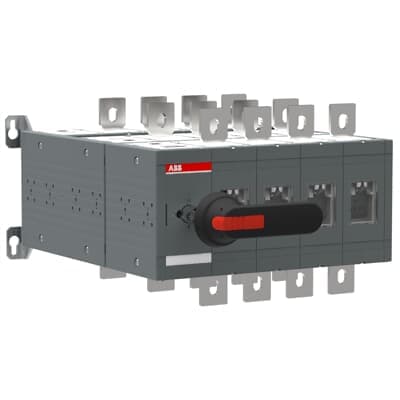

OT800E04YP
Product ID:82962
Updated: 2026/7/15
Key Features
- 1Withstand harsh environments with a black plastic IP65 handle.
- 2Enable smooth manual operation with a handle extension.
- 3Suit various applications in 3 and 4 pole configurations.
- 4Meet IEC 60947-6-1 standards for reliable performance.
- 5Simplify installation and maintenance with a modular design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 380 mm 14.96 in | Product Net Height | 250 mm 9.84 in |
| Product Net Depth / Length | 432 mm 17.01 in | Product Net Weight | 33.56 kg 73.99 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A | Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA123593R1001 |
