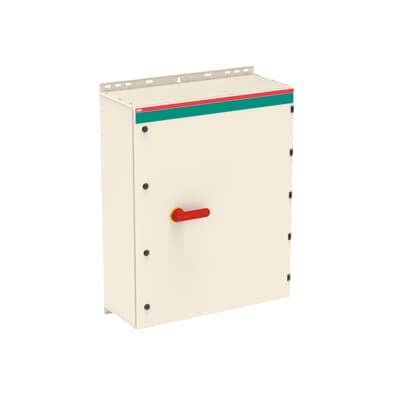

OT800ELUU6AZ
Product ID:70607
Updated: 2026/4/3
Key Features
- 1Deploy a high-performance 6-pole safety switch for applications up to 415V AC23. 2、Handle robust operations with a 720A rated current and 400kW power rating. 3、Enhance system functionality using the mounted auxiliary contact. 4、Ensure durability with an IP65 enclosure that protects against harsh conditions. 5、Operate easily with the distinct red-yellow pistol handle for clear visibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 800 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 45.8 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | Blank /Blank |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 16pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Handle Color | Red / Yellow | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mounted Auxiliary Contacts | 4 NO, 2 NC | Neutral Type | No neutral terminal |
| Number of Auxiliary Contacts NC | 2 | Number of Auxiliary Contacts NO | 4 |
| Number of Poles | 6P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW (500 V) 500 kW (690 V) 710 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
| Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA128198R1001 |
Specifications may be subject to change without notice
