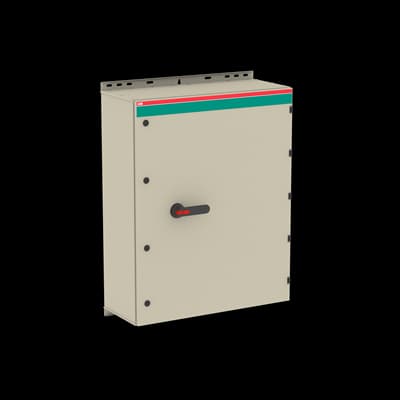

OT800KLUU6BZ
Product ID:71479
Updated: 2026/4/3
Key Features
- 1Meet high safety standards per IEC 60947-3 and EN60204. 2、Ensure durability with a galvanized steel, polyester-coated enclosure. 3、Configure versatile cable entry via top/bottom or blank plates. 4、Secure operation with a standard padlockable handle in "O" position. 5、Protect against harsh conditions with IP65-rated sealing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 800 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 45.8 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | Blank /Blank |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 8pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Handle Color | Black | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC | Neutral Type | Detachable neutral |
| Number of Auxiliary Contacts NC | 0 | Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 6P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Impulse Withstand Voltage (Uimp) | 20 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A (690 V) 720 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A (500 V) 720 A (690 V) 720 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW (500 V) 500 kW (690 V) 710 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 | Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m | Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022834R1690 |
Specifications may be subject to change without notice
