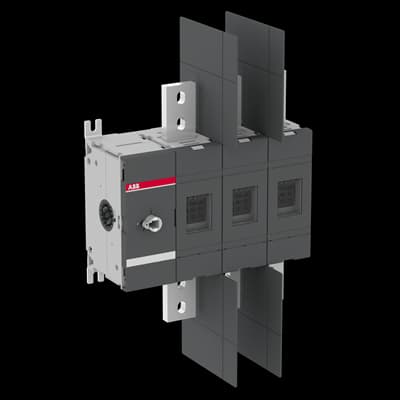

OT800U03-1000
Product ID:82284
Updated: 2026/4/3
Key Features
- 1Handle high 800A amperage for robust connections. 2、Operate easily with a front-operated mechanism. 3、Enhance safety with finger-proof dead front construction. 4、Install and customize with modular design. 5、Ensure reliable operation with 110kA short circuit rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SCC301233D0201 | Product Net Width | 334.5 mm |
| Product Net Height | 372 mm | Product Net Depth / Length | 151.5 mm |
| Product Net Weight | 17.2 kg | Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
| Ampere Rating | 600 A | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA161434R1001 |
Specifications may be subject to change without notice
