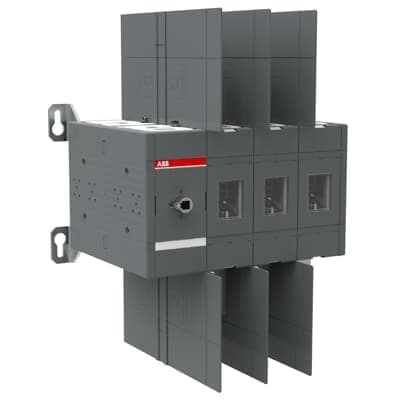

OT800U03C
Product ID:82808
Updated: 2026/4/4
Key Features
- 1Handle up to 800A at 600V AC for demanding applications. 2、Operate easily from the front with the front-operated mechanism. 3、Switch quickly between two circuits using the double throw design. 4、Meet stringent safety standards with UL and CSA approval. 5、Save panel space with a compact 14.65" x 13.15" x 5.55" design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 400 mm 15.75 in |
| Product Net Height | 376 mm 14.8 in | Product Net Depth / Length | 335 mm 13.19 in |
| Product Net Weight | 38.11 kg 84.02 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1600 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Handle and shaft not included |
| Mechanical Durability | 3000 cycle | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Standards | UL 98 / IEC60947-6-1 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open | Ampere Rating | 800 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 250 Hp (acc. to UL 480 V) 500 Hp (acc. to UL 600 V) 500 Hp | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA104030R1001 |
