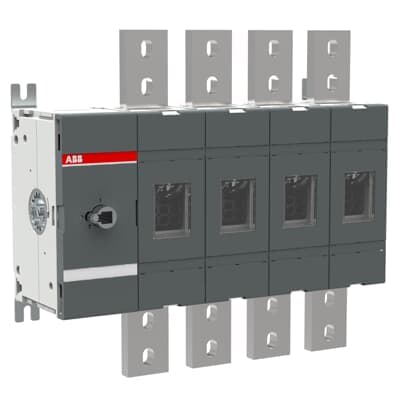

OT800U04-1000
Product ID:82289
Updated: 2026/7/14
Key Features
- 1Handle robust applications with a high amperage rating of 800 A.
- 2Save valuable panel space with compact dimensions.
- 3Ensure reliability with a 92 kA short circuit current rating.
- 4Simplify installation using a front-operated, non-fusible design.
- 5Suit diverse low voltage and high horsepower applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SCC301233D0201 | Product Net Width | 414.5 mm |
| Product Net Height | 372 mm | Product Net Depth / Length | 151.5 mm |
| Product Net Weight | 22.2 kg | Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
| Ampere Rating | 600 A | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA161435R1001 |
Specifications may be subject to change without notice
