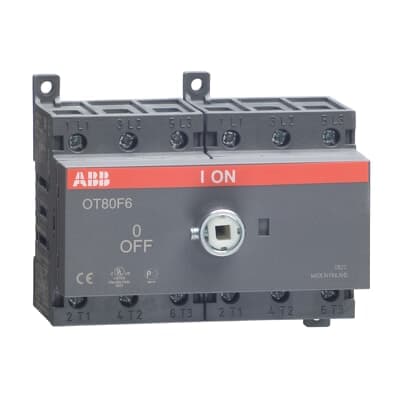

OT80F6
Product ID:86939
Updated: 2026/4/4
Key Features
- 1Operate reliably in demanding environments. 2、Save space with compact 85mm dimensions. 3、Simplify installation with adjustable components. 4、Ensure safety with IP20 finger protection. 5、Mount flexibly on DIN rail or surface.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301263D0201 |
| Pollution Degree | 3 | Product Net Width | 105 mm |
| Product Net Height | 91.5 mm | Product Net Depth / Length | 84.5 mm |
| Product Net Weight | 0.6 kg | Cable Cross-Section | Cu 1.5 ... 35 mm² |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x Cu 1.5â¦4 mm² Solid 1x Cu 1.5â¦6 mm² Flexible 1x Cu 1.5â¦35 mm² Stranded 1x Cu 1.5â¦35 mm² | Conventional Free-air Thermal Current (Ith) | Î = 40 °C 80 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Handle Type | Knob Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 20000 |
| Mounting Type | Base mounting | Number of Poles | 6P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (100 A fuse, â¤415 V) 50 kA (100 A fuse, 500 V) 100 kA (80 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 75 A (500 V) 58 A (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 37 kW (500 V) 37 kW (690 V) 18.5 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 2.1 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 | Special Functions | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 | Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 2 N·m |
| Wire Stripping Length | Main Circuit 10-12 mm | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 80 A | Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 10 Hp (440 ... 480 V AC) Single Phase 20 Hp (550 ... 600 V AC) Single Phase 20 Hp (220 ... 240 V AC) Three Phase 20 Hp (440 ... 480 V AC) Three Phase 40 Hp (550 ... 600 V AC) Three Phase 40 Hp |
| Wire Stripping Length | Main Circuit 10-12 mm | Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | acc. IEC 60947-1 2 N·m | Tightening Torque UL/CSA | 18 in·lb |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601464 |
| E-Number (Norway) | 4363566 | Manufacturer ID | 1SCA105427R1001 |
Specifications may be subject to change without notice
