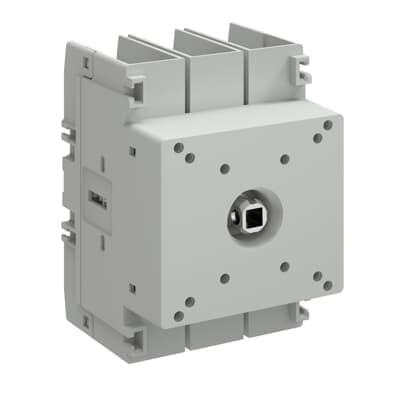

OT80G3-3DS
Product ID:89801
Updated: 2026/4/3
Key Features
- 1Reduce power losses by up to 27% for significant energy savings. 2、Enhance safety with a true fourth-pole design that minimizes fault risks. 3、Achieve compliance with global IEC and UL electrical safety standards. 4、Simplify installation and security via easier locking mechanisms. 5、Support circular economy principles with over 95% recyclable materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301334D0201 |
| Pollution Degree | 3 | Product Net Width | 70 mm |
| Product Net Height | 102.5 mm | Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.412 kg | Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 2.5â¦4 mm² Solid 1/2x Cu 2.5â¦6 mm² Flexible 1x Cu 2.5â¦70 mm² Flexible 2x Cu 2.5â¦25 mm² Stranded 1x Cu 2.5â¦70 mm² Stranded 2x Cu 2.5â¦25 mm² |
| Conventional Free-air Thermal Current (Ith) | 80 A | Conventional Thermal Current (Ithe) | 80 A |
| Degree of Protection | Front IP20 | Handle Type | Handle not included |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC | Mechanical Durability | Nr. Operations 100000 |
| Mounting Type | Door mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 2.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (100 A fuse, â¤415 V) 50 kA (80 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V | Rated Operational Current AC-21A (Ie) | (415 V) 80 A (690 V) 80 A (800 V AC) 63 A |
| Rated Operational Current AC-22A (Ie) | (415 V) 80 A (690 V) 80 A (800 V) 40 A | Rated Operational Current AC-23A (Ie) | (415 V) 80 A (690 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (415 V) 45 kW (690 V) 55 kW | Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 4.8 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA for 0.2 s 3.3 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Special Functions | No |
| Standards | IEC60947-3 | Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 16-18 mm Main Circuit 0.63-0.71 in | Wire Stripping Length | Main Circuit 16-18 mm Main Circuit 0.63-0.71 in |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | UL 53 lbf·in | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA162517R1001 |
Specifications may be subject to change without notice
