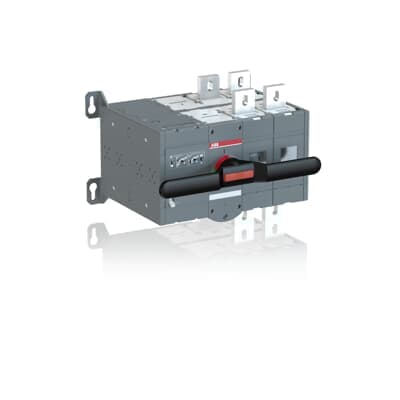

OTM1000E2CM230V
Product ID:87035
Updated: 2026/7/15
Key Features
- 1Handle up to 1000A for reliable power transfer.
- 2Utilize motorized operation for secure switching.
- 3Feature robust insulation rated at 1000V.
- 4Ensure heavy-duty performance in demanding applications.
- 5Mount horizontally, vertically, or flat for versatile installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 427 mm 16.81 in | Product Net Height | 306 mm 12.05 in |
| Product Net Depth / Length | 297 mm 11.69 in | Product Net Weight | 26 kg 57.32 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1000 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting | Number of Poles | 2P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 19 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1000 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA121279R1001 |
Specifications may be subject to change without notice
