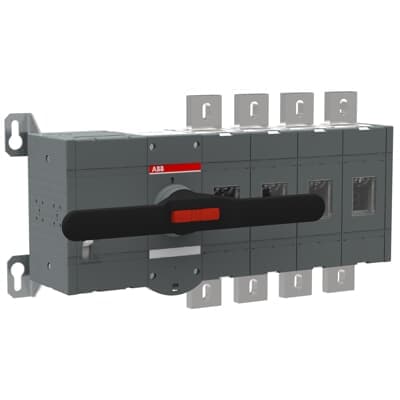

OTM1250E4M230C
Product ID:87105
Updated: 2026/7/15
Key Features
- 1Enhance reliability with inbuilt safety features for superior protection.
- 2Suit a wide range from 16 to 3150 Amperes for AC/DC applications.
- 3Ensure long-lasting performance with 20,000 operation cycle design.
- 4Simplify installation using compact design with integrated terminal lug kits.
- 5Support up to 50 kVAr rated capacitor power limited by fuse links.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Net Width | 586.5 mm | Product Net Height | 306 mm |
| Product Net Depth / Length | 153 mm | Product Net Weight | 29 kg |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1250 A | Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A |
| Degree of Protection | Front IP00 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Lock Type | Yes | Mechanical Durability | 6000 |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 29 W | Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA (1250 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A (1000 V AC) 1250 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 92 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA115367R1001 |
Specifications may be subject to change without notice
