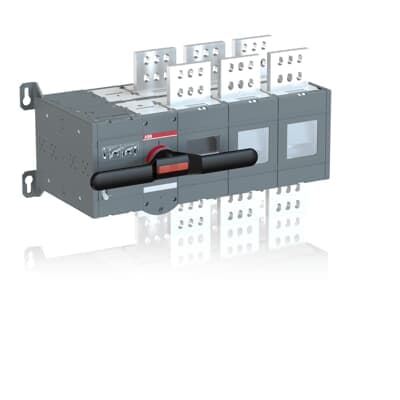

OTM2000E3CM230C
Product ID:83601
Updated: 2026/4/3
Key Features
- 1Handle high operational currents up to 2000 A. 2、Operate easily with a direct mounted handle. 3、Ensure smooth switching via an open transition mechanism. 4、Rely on 1000 V insulation and 12 kV impulse withstand voltage. 5、Install securely with base mounting and IP20 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 645 mm 25.39 in |
| Product Net Height | 377 mm 14.84 in | Product Net Depth / Length | 335 mm 13.19 in |
| Product Net Weight | 645 kg 1421.98 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2000 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 55 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2000 A (500 V) 2000 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641796 | Manufacturer ID | 1SCA112709R1001 |
Specifications may be subject to change without notice
