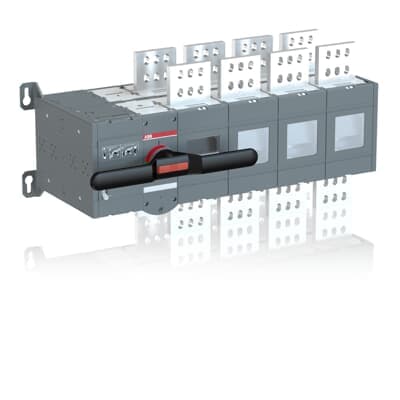

OTM2000E4CM230C
Product ID:82754
Updated: 2026/4/3
Key Features
- 1Ensure robust electrical insulation with a high 12kV impulse withstand voltage. 2、Optimize energy efficiency through low power loss of just 55W. 3、Simplify manual switching via reliable motorized operation with a handle. 4、Complete installation quickly using the included bolt kit with nuts and washers. 5、Support high operational demands with a wide 2000A current rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 771 mm 30.35 in |
| Product Net Height | 377 mm 14.84 in | Product Net Depth / Length | 372 mm 14.65 in |
| Product Net Weight | 95 kg 209.44 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2000 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 55 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2000 A (500 V) 2000 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641800 | Manufacturer ID | 1SCA112712R1001 |
Specifications may be subject to change without notice
