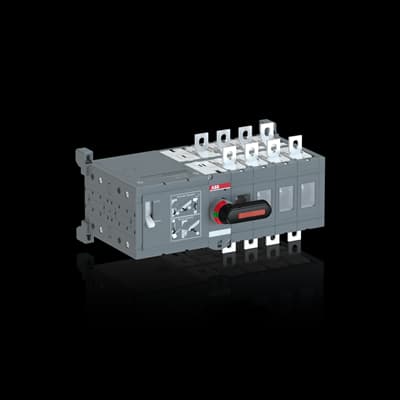

OTM200E4CM24D
Product ID:70129
Updated: 2026/4/3
Key Features
- 1Handle up to 200A current for reliable operation in demanding environments. 2、Suit both AC and DC applications for broad system compatibility. 3、Operate easily with motorized switches to reduce manual effort. 4、Enhance safety with IP20 protection and protected terminal clamps. 5、Customize with extended shafts and various handle types for flexibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 307 mm 12.09 in |
| Product Net Height | 150 mm 5.91 in | Product Net Depth / Length | 197 mm 7.76 in |
| Product Net Weight | 4 kg 8.82 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 24 V DC |
| Mounting Type | Base mounting | Number of Poles | 4 |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 200 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW (500 V) 132 kW (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641723 | Manufacturer ID | 1SCA022846R1240 |
