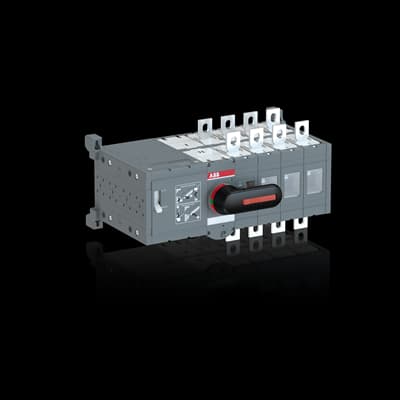

OTM315E4CM110V
Product ID:83201
Updated: 2026/4/3
Key Features
- 1Operate manually with the included handle for easy control. 2、Install quickly using the comprehensive bolt, nut, and washer kit. 3、Handle high currents up to 315A at various voltage ratings. 4、Ensure durability with a fully enclosed, robust construction. 5、Enhance safety with the storage clip for handle and spare fuses.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 367 mm 14.45 in |
| Product Net Height | 185 mm 7.28 in | Product Net Depth / Length | 235 mm 9.25 in |
| Product Net Weight | 9.4 kg 20.72 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 315 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 110 ... 125 V AC/DC |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 315 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW (500 V) 220 kW (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641749 | Manufacturer ID | 1SCA022847R2790 |
